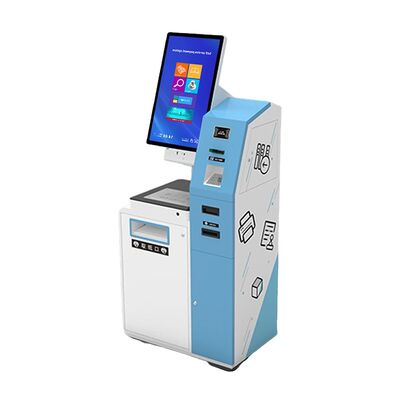

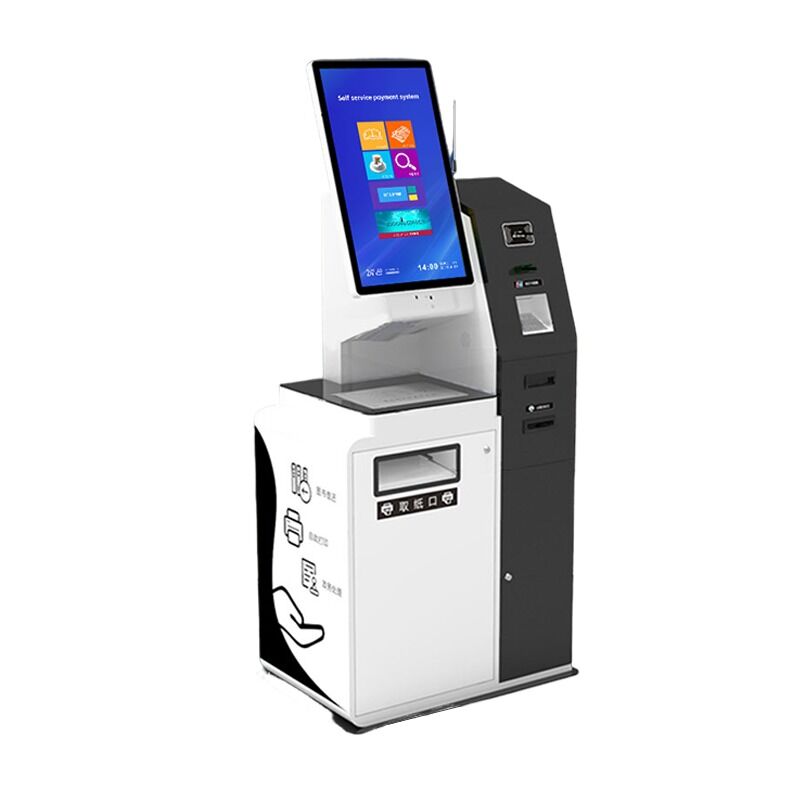

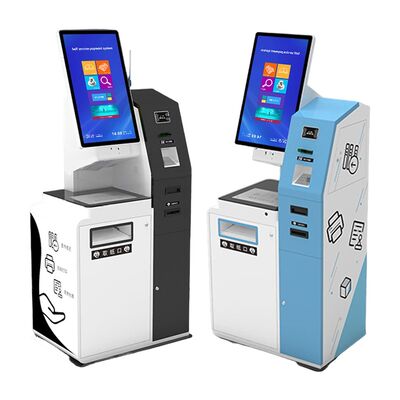

Self Service Kiosk with Capacitive Touch 10 Point Screen Custom Color and Floor Standing Wall Mounting Counter Top Installation
Detail produk:
| Tempat asal: | Guangdong, Tiongkok |
| Nama merek: | Kviso |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 5 |
|---|---|
| Harga: | $1,500-1,900 |
|
Informasi Detail |
|||
| Layar Sentuh: | Sentuh Kapasitif 10 Titik | Ukuran Layar: | 15"17"19" 22"32"42"55" Opsional |
|---|---|---|---|
| Sistem Operasi: | Android/Jendela 7/8/10 (opsional) | CPU: | Inteli3/i5/i7 |
| RAM: | 4GB/8GB/16GB | SSD: | 128/256GB |
| Catu daya: | 110V~240V/50HZ~60HZ | Antarmuka: | RS-232,USB |
| Resolusi Layar: | 4096x4096 | Pantau Kecerahan: | 300cd/m2 |
| Pantau Kontras: | 1000:01:00 | Monitor Resolusi: | 1280*1024/1920*1080 |
| Jenis Kartu: | Kartu magnetik/Kartu IC/Kartu RF | Tombol Angka: | 10 Tombol Angka, 6 Tombol Fungsi |
| Kapasitas Penerima Uang Tunai: | 600 buah/1000 buah/1500 buah/2200 buah | ||
| Menyoroti: | Capacitive Touch 10 Point Self Service Kiosk,Custom Color ATM Kiosk Machine,Floor Standing Payment Kiosk |
||
Deskripsi Produk
Self Service ATM Kiosk Machine with Bills Dispenser and Card Touchscreen Payment
A comprehensive self-service banking solution featuring advanced bill dispensing, multi-card payment processing, and intuitive touchscreen interface designed for modern financial institutions.
Technical Specifications
| Component | Specifications |
|---|---|
| Computer |
Motherboard: Rugged industrial grade CPU: Intel I3/I5/I7 RAM: 4GB/8GB/16GB SSD: 128/256GB Power Supply: 110V~240V/50HZ~60HZ Interface: RS-232, USB |
| Touch Screen |
Screen Size: 17"/19"/22"/32"/43"/55" Screen Type: Capacitive with multi touch points Resolution: 4096x4096 |
| Monitor |
Screen Size: 17"/19"/22"/32"/43"/55" Brightness: 300cd/m2 Contrast: 1000:1 Resolution: 1280*1024/1920*1080 |
| Card Reader | Card Type: Magnetic card/IC Card/RF Card |
| Metal Pinpad |
Number Keys: 10 Number Keys, 6 Function Keys Encryption Certification: PCI/VISA |
| Cash Acceptor |
Brand: MEI/CPI/ITL/JCM Capacity: 600Pcs/1000Pcs/1500Pcs/2200Pcs |
| Receipt Printer |
Brand: Custom/Epson/Star Auto-cut: Included Width of Paper: 60mm/80mm/120mm |
| QR Code Reader | Brand: Honeywell/Motorola |
| Power Supplier |
Input & Output: Input 110-240VAC; Output 24V5A 12V3A Brand: Meanwell |
| Enclosure |
Material: Cold-rolled Metal with 1.5mm thickness Coating: Powder coated Color and Logo: Upon request |

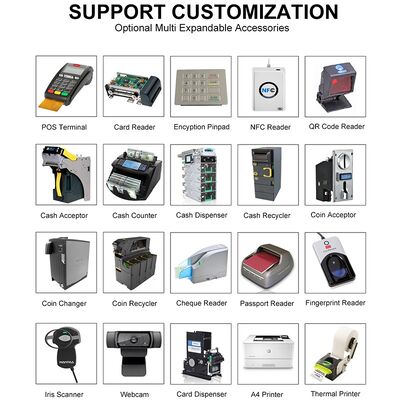

| Other Peripherals | Optional: Cash dispenser, coin acceptor, coin hopper, A4 laser printer, passport reader, fingerprint reader, webcam, card dispenser and more available upon request |
Additional Product Images
Key Features
- Rugged industrial-grade computer components for reliable 24/7 operation
- High-resolution capacitive touchscreen with multi-touch capability
- Multi-card reader support (Magnetic, IC, and RF cards)
- PCI/VISA certified metal pinpad for secure transactions
- High-capacity cash acceptor from leading brands
- Professional receipt printing with auto-cut functionality
- Durable cold-rolled metal enclosure with powder coating
- Flexible customization options for specific banking requirements
